Designed & Manufactured In Accordance with IS 3938
CAPACITY RANGE: 10 TOP 15 TON
Duty Class: Class 1 / Class 2 / Class 3 / Class 4
With feature Variants i.e.
- Multi speed (Dual Speed)
- Flame proof Application
The special feature is low headroom spur/helical gears running gears running on antifriction ball bearings with oil bath lubrication motors conforming to IS 325, "fail" to safe brakes which automatically operates in case of any power failure, tested wire rope conforming to IS 2266, longed hooks conforming to IS 3815 and push button stations operation at step-down voltage of 110v, 24v.
TECHNICAL SPECIFICATIONS OF THE "BAHUCHAR CRANE" WIRE ROPE HOISTS

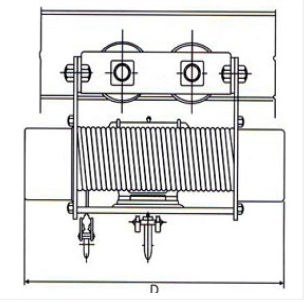

| S.W.L Kgs | Lift Mtr. | No of Falls | Wire Rope Dia | Speed M/Min Hoisting | CT Speed | Motor HP Hoisting | CT Motor HP | Dimensions (mm) | Wt. kgs |
|---|---|---|---|---|---|---|---|---|---|
| 500 | 6 | 2 | 8 | 4.0 | 18 | 1.0 | 0.25 | A: 180, B: 460, C: 300, D: 400, E: 580, F: 720 | 150 |
| 1000 | 6 | 2 | 8 | 4.0 | 18 | 1.5 | 0.25 | A: 180, B: 480, C: 360, D: 420, E: 680, F: 750 | 220 |
| 2000 | 6 | 2 | 10 | 3.0 | 15 | 3.0 | 0.5 | A: 180, B: 500, C: 380, D: 450, E: 800, F: 1050 | 500 |
| 3000 | 6 | 2 | 10 | 3.5 | 15 | 5.0 | 0.75 | A: 200, B: 600, C: 500, D: 650, E: 1000, F: 1350 | 650 |
| 5000 | 6 | 2 | 12 | 3.5 | 10 | 7.5 | 1.0 | A: 200, B: 700, C: 600, D: 750, E: 1250, F: 1500 | 850 |
| 7500 | 6 | 2 | 16 | 3.5 | 10 | 10.0 | 1.5 | A: 300, B: 800, C: 700, D: 900, E: 1350, F: 1600 | 1300 |
| 10000 | 6 | 2 | 16 | 2.2 | 10 | 12.5 | 2.0 | A: 400, B: 950, C: 800, D: 1000, E: 1500, F: 1700 | 1600 |
| 15000 | 6 | 2 | 20 | 2.2 | 12 | 15.0 | 2.5 | A: 600, B: 1000, C: 950, D: 1100, E: 1750, F: 1900 | 1650 |
